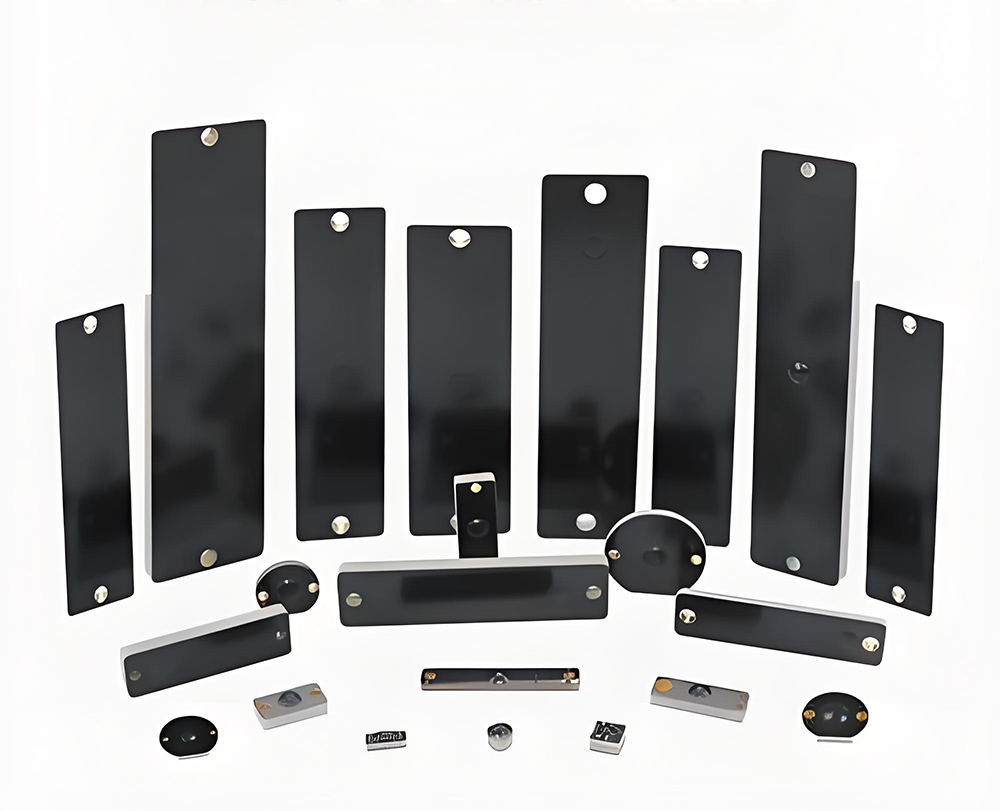

PCB Anti-Metal Tags

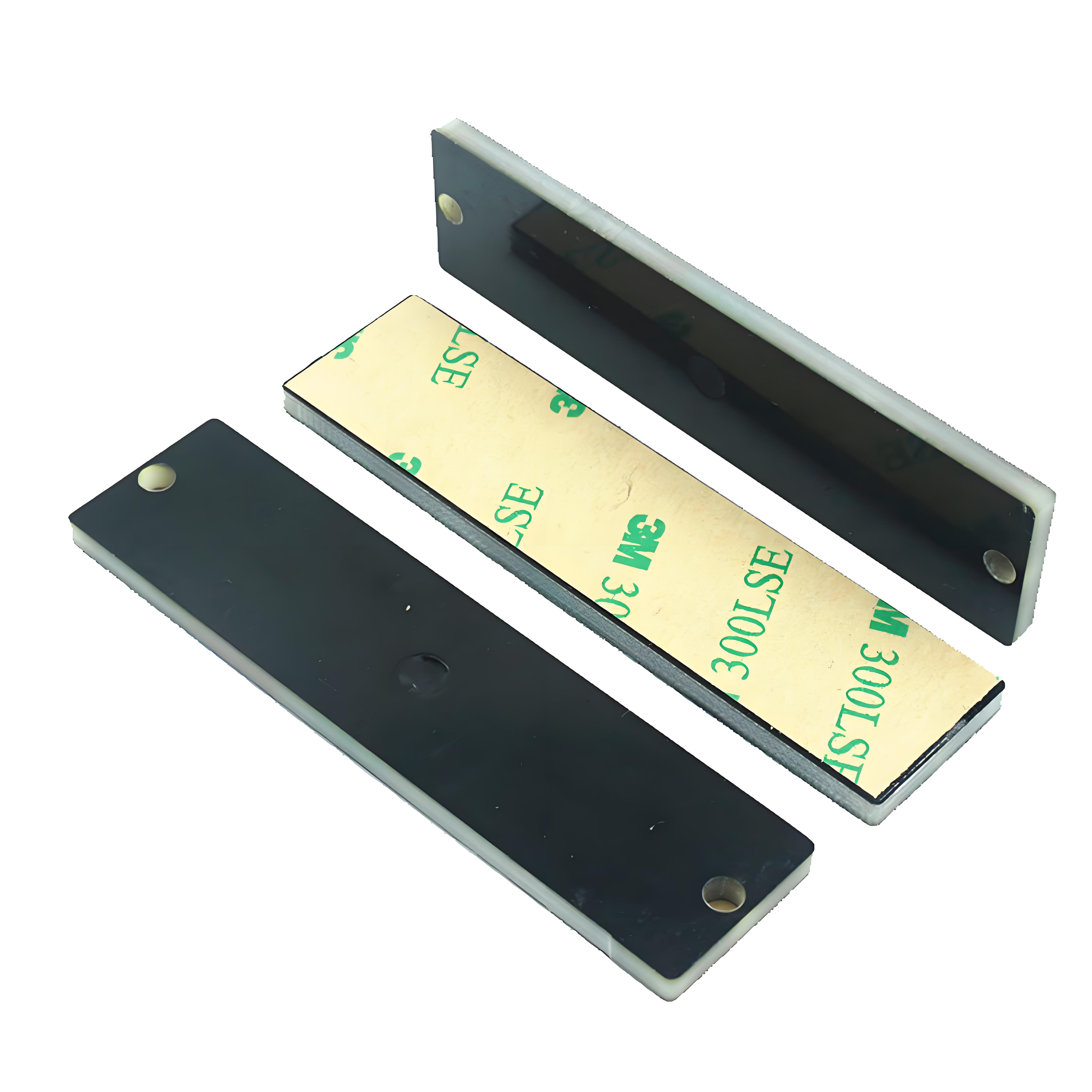

Our PCB-based anti-metal RFID tags are specially designed for reliable performance on metal surfaces. These tags feature a unique microstrip antenna design on high-quality FR-4 PCB substrate with a protective coating for durability.

Key Specifications:
Chip Options: Impinj Monza R6 / Alien Higgs-3 / NXP Ucode 7
Frequency: 860-960MHz UHF (ISO 18000-6C)
Read Range: 1-8m (on metal surfaces)
Material: FR-4 PCB with protective epoxy coating
Dimensions: 50×50×3mm (standard)
Operating Temp: -40°C to +125°C
Protection Rating: IP68 waterproof/dustproof

Special Features:
✓ Optimized for metal surface mounting
✓ High-temperature resistant
✓ Chemical/UV resistant coating
✓ Thin profile (3mm thickness)
✓ Customizable shapes/sizes

Applications:
• IT/server asset tracking
• Industrial equipment management
• Tool/container identification
• Medical device tracking
• Automotive parts management

These high-performance tags maintain excellent read reliability even in challenging metallic environments. Custom designs available.

Brand	Chip Type	Read Sensitivity	TID	Access	Kill	EPC	USER
Alien	Higgs 3	-18dBm	E2003412	32	32	96-496	512
	Higgs 4	-18.5dBm	E2003414	32	32	128	128
	Higgs-EC	-22.5dBm	E2003811	32	32	128	128
	Higgs 9	-22.5dBm	E2003821/E2803821	32	32	96-496	688
	Higgs 10	-23dBm	E2803813	32	32	96-128	0-32
NXP	Ucode 8	-23dBm	E2806894	32	32	128	0
	Ucode 8m	-23dBm	E2806994	32	32	96	32
	Ucode 9	-24dBm	E2806995	32	32	96	0
	Ucode 9XE	-24dBm	E2806A162	32	32	128	32
	Ucode 9XM	-24dBm	E2806897	32	32	128/256/496	752/624/384
Impinj	Monza 4i	-22dBm	E2801114	32	32	256	480
	Monza 4D	-22dBm	E2801100	32	32	128	32
	Monza 4QT	-22dBm	E2801105	32	32	128	512
	Monza R6	-22.1dBm	E2801160	0	0	96	0
	Monza R6-P	-22.1dBm	E2801170	32	32	128	32
	M 730	-24dBm	E2801191	32 (Share)		128	0
	M 750	-24dBm	E2801190	32 (Share)		96	32
	M 770	-24dBm	E28011A0	32 (Share)		128	32
	M 780	-23.5dBm	E28011C0	32 (Share)		496	128
	M 781	-23.5dBm	E28011C1	32 (Share)		128	512
	M 830	-25.5dBm	E28011B0	32 (Share)		128	0
	M 850	-25.5dBm	E28011B0	32 (Share)		96	32
EM	EM 4324	-8dBm,-27dBm	E200B001/2	32	32	96	720
	EM 4325	-8dBm,-30dBm	E200BXXX	32	32	352	3072
	EM 4423	-16dBm	E280B0A0/1	32	32	128/224	160/64
	EM 4124	-19dBm	E200B080	32	32	96	0
	EM 4126	-19dBm	E200B0C0	0	0	208	0
	EM 4425	-20dBm	E200B112	32	32	480	1056
