RFID Anti-Metal Tags

Wire Rope Lead Seal Tags

Product description: Our heavy-duty RFID lead seals combine tamper-evident security with UHF RFID tracking for high-value cargo and equipment protection.
INQUIRY

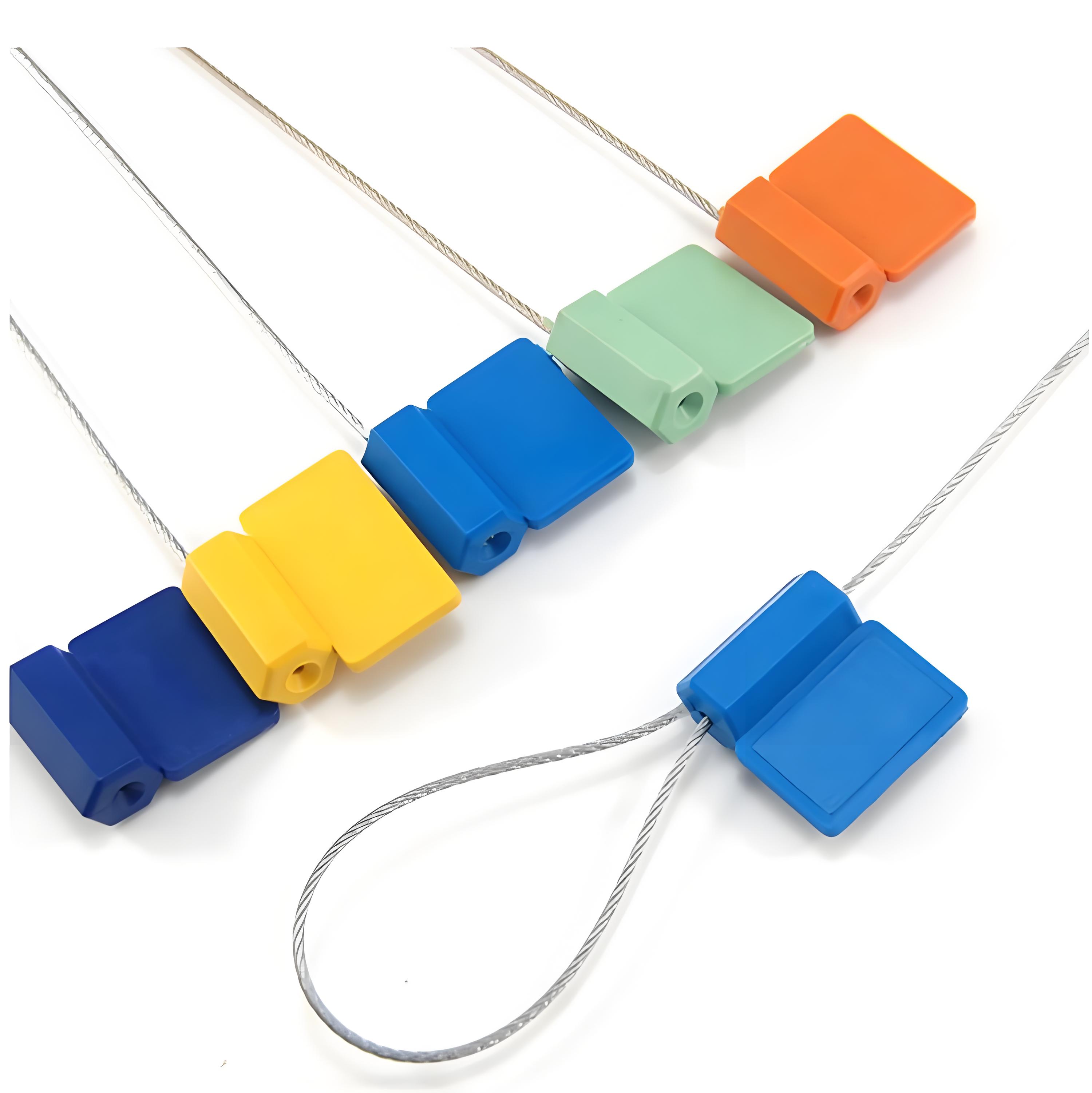

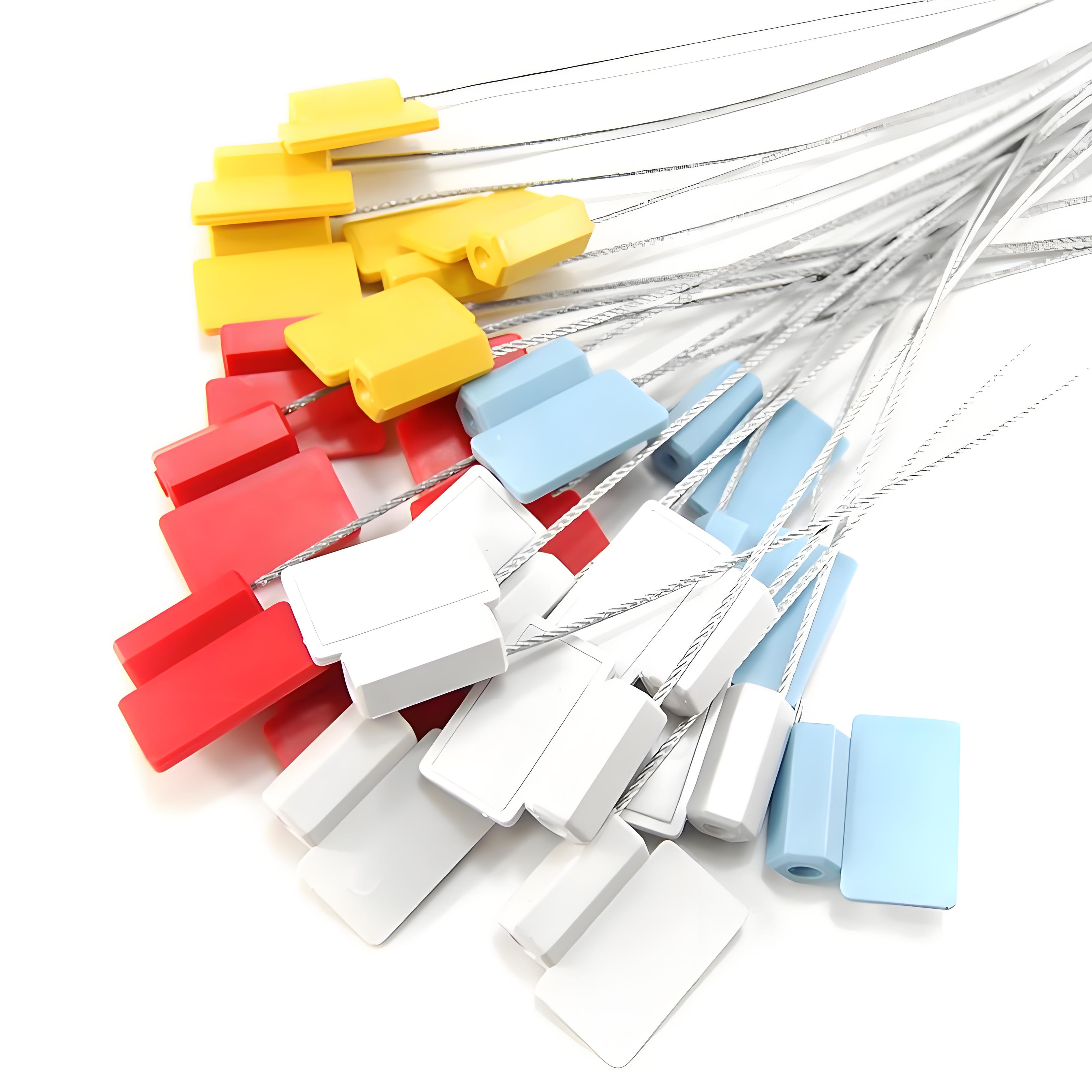

Steel Wire Sealed RFID Lead Tag

Our heavy-duty RFID lead seals combine tamper-evident security with UHF RFID tracking for high-value cargo and equipment protection. These rugged tags feature a steel wire core with a reinforced plastic/PVC casing, providing visible tamper-proof protection while enabling wireless identification.

Key Specifications:
Chip Options: Alien Higgs-3 / Impinj Monza R6
Frequency: 860-960MHz UHF (ISO 18000-6C)
Read Range: 1-5m (depends on environment)
Tensile Strength: ≥50kg (wire breakage alarm)
Material: PVC/ABS shell + steel wire core
Temperature Range: -30°C to +75°C
Unique Features: Serialized numbering + barcode option

Security Features:
✓ One-time locking mechanism
✓ Tamper-evident design
✓ Unique TID anti-counterfeiting
✓ Visible & digital authentication

Applications:
• Container/cargo security seals
• Meter/valve tamper protection
• Logistics & transportation
• Energy/utility equipment monitoring

Ideal for supply chain security where both physical and digital protection are required. Custom printing and encoding available.

Brand	Chip Type	Read Sensitivity	TID	Access	Kill	EPC	USER
Alien	Higgs 3	-18dBm	E2003412	32	32	96-496	512
	Higgs 4	-18.5dBm	E2003414	32	32	128	128
	Higgs-EC	-22.5dBm	E2003811	32	32	128	128
	Higgs 9	-22.5dBm	E2003821/E2803821	32	32	96-496	688
	Higgs 10	-23dBm	E2803813	32	32	96-128	0-32
NXP	Ucode 8	-23dBm	E2806894	32	32	128	0
	Ucode 8m	-23dBm	E2806994	32	32	96	32
	Ucode 9	-24dBm	E2806995	32	32	96	0
	Ucode 9XE	-24dBm	E2806A162	32	32	128	32
	Ucode 9XM	-24dBm	E2806897	32	32	128/256/496	752/624/384
Impinj	Monza 4i	-22dBm	E2801114	32	32	256	480
	Monza 4D	-22dBm	E2801100	32	32	128	32
	Monza 4QT	-22dBm	E2801105	32	32	128	512
	Monza R6	-22.1dBm	E2801160	0	0	96	0
	Monza R6-P	-22.1dBm	E2801170	32	32	128	32
	M 730	-24dBm	E2801191	32 (Share)		128	0
	M 750	-24dBm	E2801190	32 (Share)		96	32
	M 770	-24dBm	E28011A0	32 (Share)		128	32
	M 780	-23.5dBm	E28011C0	32 (Share)		496	128
	M 781	-23.5dBm	E28011C1	32 (Share)		128	512
	M 830	-25.5dBm	E28011B0	32 (Share)		128	0
	M 850	-25.5dBm	E28011B0	32 (Share)		96	32
EM	EM 4324	-8dBm,-27dBm	E200B001/2	32	32	96	720
	EM 4325	-8dBm,-30dBm	E200BXXX	32	32	352	3072
	EM 4423	-16dBm	E280B0A0/1	32	32	128/224	160/64
	EM 4124	-19dBm	E200B080	32	32	96	0
	EM 4126	-19dBm	E200B0C0	0	0	208	0
	EM 4425	-20dBm	E200B112	32	32	480	1056
