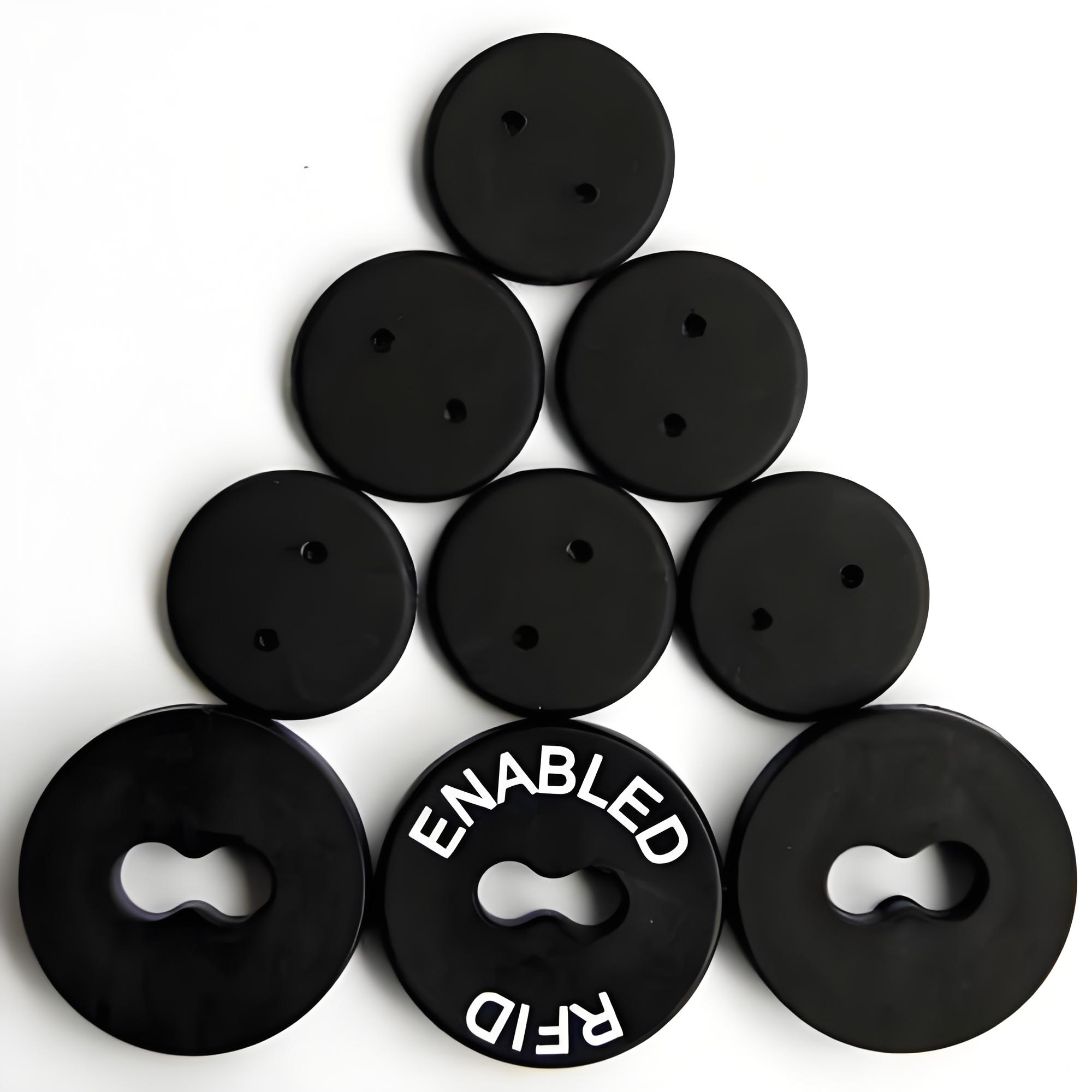

UHF PPS Button Tags

UHF PPS/ABS Button Laundry Tags are ultra-rugged RFID solutions engineered for industrial textile tracking. Encased in high-temperature thermoplastics (PPS or ABS), they withstand >200 wash cycles (95°C+), chemical sterilization, and commercial dryers. Operating at 860–960MHz (EPC Gen2), these tags enable automated inventory management with long-range reads (up to 6m), even when stacked. Featuring screw-in or clamp-on designs, they embed securely into garment seams without compromising comfort. Rewritable memory (EPC + user bank) logs wash counts and maintenance data, reducing textile loss in healthcare, hospitality, and rental uniforms. Fully compliant with ISO 18000-6C standards.

Key Features:
- Material Resilience: PPS (chemical/heat-resistant) or ABS (impact-resistant) housings
- Extreme Durability: 200+ industrial washes, steam, and chemical exposure
- Performance: 4–6m read range; high-speed bulk scanning
- Data Capabilities: 128-bit EPC + optional user memory for wash-cycle logging
- Mounting: Sewn, clamped, or screwed into textiles

- Applications: Hospital linens, hotel towels, workwear rental, and automated sorting systems

Brand	Chip Type	Read Sensitivity	TID	Access	Kill	EPC	USER
Alien	Higgs 3	-18dBm	E2003412	32	32	96-496	512
	Higgs 4	-18.5dBm	E2003414	32	32	128	128
	Higgs-EC	-22.5dBm	E2003811	32	32	128	128
	Higgs 9	-22.5dBm	E2003821/E2803821	32	32	96-496	688
	Higgs 10	-23dBm	E2803813	32	32	96-128	0-32
NXP	Ucode 8	-23dBm	E2806894	32	32	128	0
	Ucode 8m	-23dBm	E2806994	32	32	96	32
	Ucode 9	-24dBm	E2806995	32	32	96	0
	Ucode 9XE	-24dBm	E2806A162	32	32	128	32
	Ucode 9XM	-24dBm	E2806897	32	32	128/256/496	752/624/384
Impinj	Monza 4i	-22dBm	E2801114	32	32	256	480
	Monza 4D	-22dBm	E2801100	32	32	128	32
	Monza 4QT	-22dBm	E2801105	32	32	128	512
	Monza R6	-22.1dBm	E2801160	0	0	96	0
	Monza R6-P	-22.1dBm	E2801170	32	32	128	32
	M 730	-24dBm	E2801191	32 (Share)		128	0
	M 750	-24dBm	E2801190	32 (Share)		96	32
	M 770	-24dBm	E28011A0	32 (Share)		128	32
	M 780	-23.5dBm	E28011C0	32 (Share)		496	128
	M 781	-23.5dBm	E28011C1	32 (Share)		128	512
	M 830	-25.5dBm	E28011B0	32 (Share)		128	0
	M 850	-25.5dBm	E28011B0	32 (Share)		96	32
EM	EM 4324	-8dBm,-27dBm	E200B001/2	32	32	96	720
	EM 4325	-8dBm,-30dBm	E200BXXX	32	32	352	3072
	EM 4423	-16dBm	E280B0A0/1	32	32	128/224	160/64
	EM 4124	-19dBm	E200B080	32	32	96	0
	EM 4126	-19dBm	E200B0C0	0	0	208	0
	EM 4425	-20dBm	E200B112	32	32	480	1056
